Kadee 178 “Scale” Whisker #158 Coupler & Scale Draft Gear Box

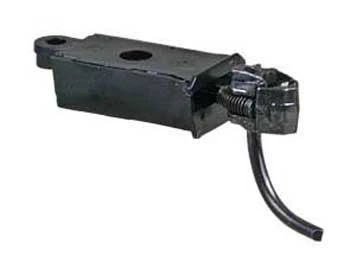

The #178 Kadee® Magne-Matic® Coupler features a “Scale” Metal Whisker® Coupler (a smaller head coupler which is more to scale and is patterned after the type ‘E” couplers), insulated “Scale” Draft Gear Box and Lid with rear and center screw holes for mounting.

2-56 screws are the most commonly used for center hole.

0-48 or 0-80 screws are used for rear hole.

Screw length will very depending on the mounting situation.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

Two pair per package

HO-Scale

UPC: 765484001782

Made in the U.S.A.

Package Includes:

• (2) Pair #178 Scale Whisker® Metal Couplers – Medium Centerset Shank
• (2) Pair #178 Scale Snap-Together Gearboxes and lids
• (2) #625 Knuckle Springs

#178 Scale Whisker® Metal Coupler Features:

• Material – Metal
• Shank Length – Medium (9/32″) (center hole to back of coupler head)
• Coupler Offset – Centerset
• Knuckle Spring – #625
• Centering System – Whisker®
• Head – Scale Head

#178 Snap-Together Gearbox Features:

• Material – Insulated Plastic
• Lid Type – Snap-Together
• Dimensions – 19/32″L x 17/64″W x 5/32″H

Mounting Specifications:

• Mounting Height – 29/64″
• Centerline – 25/64″
• Trip Pin Height – 1/32″
• Center Hole – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
• Rear Hole – 0-48 or 0-80 are the most commonly used. (Screw length will vary)
