Kadee HO Scale #25 Short (1/4″) overset shank

2 pair

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#25 Magne-Matic® Plastic Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

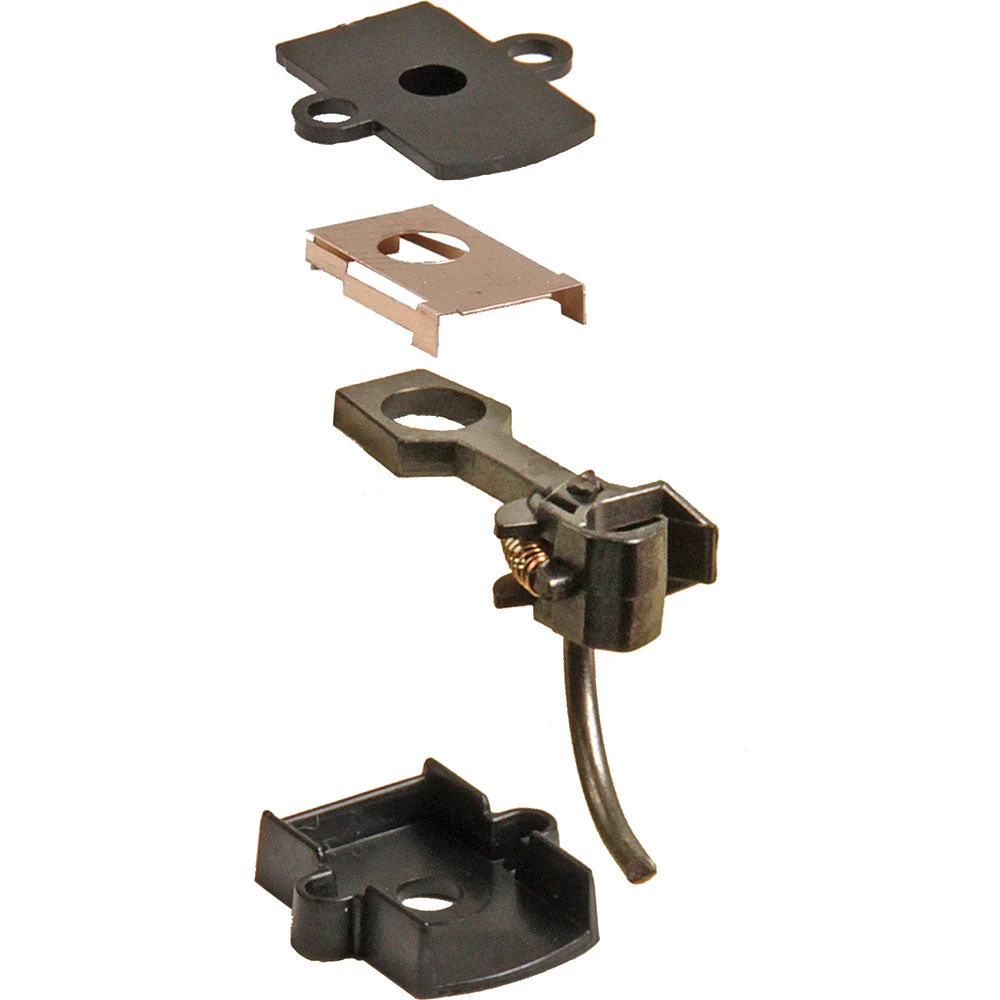

INCLUDES:

• (2) Pair #25 Plastic Shank Couplers – Short Overset Shank
• (2) Pair #634 Centering Spring NO.5® Style
• (2) Pair #213 055″ ID & .100″ ID Bushing/Sleeves
• (2) Pair #212 Talgo Truck Adaptors
• (2) Pair #213 Gearboxes
• (2) Pair #232 Gearboxes
• (2) #622 Knuckle Springs

FEATURES:

• Material – Metal Knuckle, Plastic Coupler Shank
• Shank Length – Short (1/4″) (center hole to back of coupler head)
• Coupler Offset – Overset
• Knuckle Spring – #622
• Centering System – Standard Shank
• Centering Spring – #634 Centering Spring NO.5® Style
• Head – Standard Head
• Works In Place of – #145, Short Overset “clone” couplers
• Works With – #213, #232, #234, #242, most manufacturer cast-on draft gearboxes
