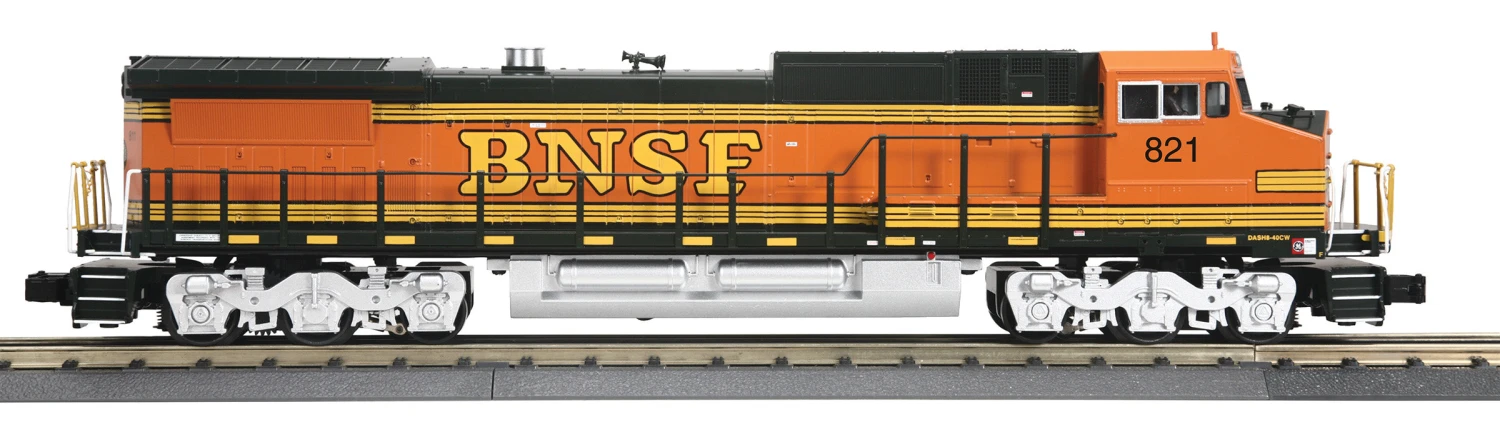

MTH RailKing 30-21090-1 O Gauge GE Dash 8 Diesel Locomotive BNSF 821 with PS3

In the mid-1980s, as computers found their way into homes across America, they made their way into locomotives as well. In 1982, a year after IBM debuted its Personal Computer, General Electric fielded its first computerized diesel, test unit No. 606. With microprocessors controlling its engine and other systems, including a MicroSentry Adhesion System for wheelslip control, No. 606 and its counterparts at EMD ushered in the third generation of diesel power. By the end of the decade, the typical American road diesel would be profoundly different both inside and outside — evolving from a four-axle hood unit with a narrow short nose and electronic controls to a high-horsepower, six-axle computerized heavy hauler with a wide “North American” cab.

After extensive testing of several prototypes, GE delivered its first production units in 1984, models B32-8 and B39-8 — “B” for two-axle trucks, “32” or “39” for 3200 or 3900 horsepower, and -8 to indicate the new model, succeeding the second-generation -7 lineup. In part due to the recession of the early 1980s, orders didn’t really heat up until late 1987, when GE uprated its prime mover to 4000 horsepower and changed the model’s name to “Dash 8.” In the ensuing years, as GE took the lead from EMD in North American locomotive sales, the Dash 8 series became a best seller, with over 1500 units delivered by the end of production in 1994.

From the beginning, the Dash 8 was offered in both four-axle (Dash 8-40B) and six-axle (Dash 8-40C) versions. With six-axle units outselling four-axle units almost seven to one, the sales numbers told the story of what was happening out on the road: as engine power increased, twelve wheels were proving superior to eight in getting all that muscle onto the rails. A 1991 Santa Fe order for 83 Dash 8s would prove to be the last four-axle road freight diesels GE ever built.

Up in the cab, another dramatic change was occuring. Following the lead of the Canadian National Railroad, where the wide-nosed “comfort cab” or “safety cab” had been standard for over a decade, the Union Pacific Railroad worked with both GE and EMD to design a safer, more comfortable cab. GE No. 606, the original -8 prototype, became a test bed for the new “North American cab,” with much input from UP engine men and crews. Introduced in 1989, the wide-nosed Dash 8-40BW and Dash 8-40CW and their EMD counterparts established the look of the American road diesel as we know it today.

FEATURES:

• Intricately Detailed, Durable ABS Body
• Die-Cast Truck Sides, Pilots and Fuel Tank
• Metal Chassis
• Metal Handrails and Horn
• (2) Handpainted Engineer Cab Figures
• Authentic Paint Scheme
• Metal Wheels, Axles and Gears
• (2) Remote-Controlled Proto-Couplers
• Prototypical Rule 17 Lighting
• Directionally Controlled Constant Voltage LED Headlights
• Lighted LED Cab Interior Light
• Illuminated LED Number Boards
• Operating LED Ditch Lights
• (2) Precision Flywheel-Equipped Motors
• Operating ProtoSmoke Diesel Exhaust
• Onboard DCC/DCS Decoder
• Locomotive Speed Control In Scale MPH Increments
• 1:48 Scale Proportions
• Proto-Sound 3.0 With The Digital Command System Featuring Freight Yard Proto-Effects
• Unit Measures: 18 1/2 x 2 5/8 x 3 7/8
• Operates On O-31 Curves
• Diesel DCC Features
• F0 Head/Tail light
• F1 Bell
• F2 Horn
• F3 Start-up/Shut-down
• F4 PFA
• F5 Lights (except head/tail)
• F6 Master Volume
• F7 Front Coupler
• F8 Rear Coupler
• F9 Forward Signal
• F10 Reverse Signal
• F11 Grade Crossing
• F12 Smoke On/Off
• F13 Smoke Volume
• F14 Idle Sequence 3
• F15 Idle Sequence 2
• F16 Idle Sequence 1
• F17 Extended Start-up
• F18 Extended Shut-down
• F19 Rev Up
• F20 Rev Down
• F21 One Shot Doppler
• F22 Coupler Slack
• F23 Coupler Close
• F24 Single Horn Blast
• F25 Engine Sounds
• F26 Brake Sounds
• F27 Cab Chatter
• F28 Feature Reset
